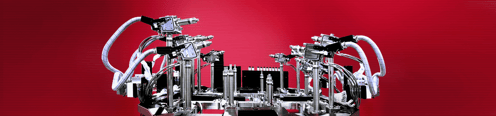

Hot Runner vs. Cold Runner: The Fundamental Difference
A cold runner system channels plastic through unheated passages in the mold. Once injected, both the part and the runner solidify and must be ejected, adding cycle time and generating scrap. This was once the standard.
A hot runner system, by contrast, uses a heated manifold and heated nozzles to maintain plastic in a molten state from the machine barrel directly to the gates of each mold cavity. There’s no solid runner to remove, which eliminates waste and significantly reduces cooling times.
While cold runners may still be useful for small production runs or temperature-sensitive materials, hot runners dominate in high-volume manufacturing due to their superior efficiency and part consistency.
Components of a Hot Runner System
1. Manifold: The Heated Distributor
The manifold is a central, heated block that evenly distributes molten plastic to the mold’s nozzles. It’s thermally insulated from the mold plates and often divided into zones, each monitored and controlled for uniform mold temperature control. Uneven heating here can result in poor flow balance across cavities, making the manifold a critical component.
2. Nozzles: Delivering Molten Plastic to the Gates
Hot runner nozzles—sometimes called “drops”—are the final link between the manifold and the mold cavities. Each nozzle is heated independently and may be either open (hot tip) or valve-gated. Their job: maintain melt temperature right up to the gate, ensuring smooth flow and proper packing of the part.
3. Heaters & Sensors: The Thermal Backbone
Cartridge heaters (for manifolds) and coil or band heaters (for nozzles) deliver thermal energy. Thermocouples, positioned strategically, measure the actual temperature in each zone. These sensors provide feedback to the controller, forming the basis of closed-loop control. If a zone begins to cool, power increases automatically; if it overheats, power is reduced.
4. Hot Runner Temperature Controller: The Control Center
This external temperature control unit (often referred to as a hot runner controller or industrial temperature controller) manages each heating zone in real time. Using PID or enhanced PID² algorithms, it continuously compares setpoints with sensor data and adjusts heater output accordingly.
Advanced systems like those from Gammaflux use phase angle firing—delivering smooth, precise power rather than simple on/off cycles. This leads to greater temperature stability, improved energy efficiency, and extended heater life.
Step-by-Step: How the Hot Runner System Operates
1. Preheating
Before production begins, the controller gradually heats the manifold and nozzles to their setpoints. A soft-start ramp-up avoids thermal stress and material degradation. Only once all zones are thermally balanced does the system signal readiness.
2. Injection Phase
During injection, the machine screw pushes molten plastic into the manifold. Because the system is uniformly heated, the plastic remains molten as it flows through the nozzles into each cavity. The controller may dynamically adjust zone temperatures—for instance, slightly increasing power in outer nozzles to balance flow.
3. Packing
As the mold cavities fill, the machine applies packing pressure. The hot runner’s job is to keep the gates open—i.e., molten—so that material continues flowing and packing pressure is maintained. Proper temperature control at the nozzle tips ensures full packing without premature freezing or unwanted drool.
4. Cooling and Ejection
While the molded parts cool in the cavity, the hot runner system maintains its internal temperature. Once cooled, the mold opens and ejects the finished part—without any solid runner to remove. The runner remains molten, ready for the next cycle.
5. Repetition
Because there is no need to reheat runner material or wait for a runner to cool, cycle times are shorter. The controller ensures all zones return to or maintain target temperatures before the next shot.
Why Temperature Control Is Critical
Maintaining consistent temperature across the hot runner system directly impacts injection molding quality. Poor control leads to a range of issues:
- Cold slugs: If plastic begins to solidify in a nozzle, a cold piece may be injected into the cavity, resulting in visual or structural defects.
- Stringing or drooling: Excess heat at nozzle tips can cause plastic to ooze out, forming strings that mar parts or clog gates.
- Short shots: If the plastic cools too much before reaching the gate, cavities may be underfilled.
- Uneven parts: Variations in temperature across zones lead to inconsistent flow and fill, especially in multi-cavity molds.
A reliable hot runner temperature controller keeps each zone within a tight tolerance—often within ±0.1°C—ensuring consistent fill, pack, and cooling. This results in fewer rejects, better part repeatability, and more stable production overall.
Advantages of Hot Runner Systems
1. Zero Runner Scrap
Since plastic never solidifies in the runner system, no extra material is created or wasted. This reduces material costs and eliminates the need for grinding and reprocessing.
2. Faster Cycle Times
With no runner to cool, cycle times can be significantly reduced. Only the part itself requires cooling, allowing faster mold opening and higher throughput.
3. Improved Part Consistency
Hot runners deliver molten plastic uniformly across all gates. This means better cavity balance, reduced warpage, and fewer variations in weight, dimensions, or mechanical properties.
4. Energy Efficiency
Modern controllers deliver only the power needed to maintain setpoints. Technologies like phase angle firing minimize overshoot and reduce overall energy consumption.
5. Greater Design Flexibility
Because no cold runner geometry is needed, designers can place gates where they offer the best performance or aesthetics. Systems like valve gates also allow clean, vestige-free surfaces.
Open vs. Valve Gate Hot Runner Systems
There are two main nozzle types in hot runner systems:
- Open gates (hot tip): The plastic flows continuously through a small heated tip. The gate freezes off after injection. Simpler and more economical, but prone to stringing if not precisely controlled.
- Valve gates: A mechanical pin opens and closes the gate. Offers better cosmetic results and precise control, especially important for large or complex parts. More expensive, but often worth the investment for high-end applications.
In both cases, precise temperature control is essential. Even a valve gate system can suffer if temperature variation causes material degradation or inconsistent flow behind the valve.
Conclusion
Modern hot runner systems almost universally use closed-loop control, where the controller adjusts power based on real-time temperature feedback from sensors. This ensures tight temperature regulation across all zones.
Open-loop control, where heater output is fixed and unresponsive to actual temperature, is outdated and only used in emergencies (e.g., when a sensor fails mid-run).
Advanced closed-loop controllers like those from Gammaflux feature:
- PID² algorithms for fast, adaptive control
- Phase angle firing for smoother power delivery
- Data logging and diagnostics for preventive maintenance
- Auto-tuning to adapt to mold-specific thermal dynamics
Conclusion: The Power of Precision
A hot runner system isn’t just a set of heated pipes—it’s a high-precision tool that directly affects mold temperature control, part quality, and production efficiency. The hot runner controller is the brain of this system, interpreting sensor feedback and adjusting power to maintain perfect thermal balance across dozens (or even hundreds) of zones.
Manufacturers that understand and invest in proper hot runner operation—especially with advanced controllers like those from Gammaflux—can expect:
- Reduced scrap and energy waste
- Shorter cycles and increased productivity
- Higher-quality, more consistent parts
For engineers and technical buyers alike, mastering hot runner technology is a practical pathway to better outcomes in plastic injection molding.
