Closed-Loop vs. Open-Loop Hot Runner Control Systems

Closed-loop controllers actively monitor and adjust temperature using feedback from sensors (thermocouples). In a closed-loop hot runner controller, each heating zone has a thermocouple sensor providing real-time temperature data; the controller’s algorithm (typically PID-based) continually modulates power to each heater to maintain the setpoint. This feedback control approach is the default mode in virtually all modern industrial hot runner systems. Closed-loop control offers high precision: if the temperature drifts, the controller automatically compensates by increasing or reducing heater power. Advanced closed-loop units often include auto-tuning functions that optimize the PID parameters for the specific mold and material – for example, by running an auto-tune cycle, the controller can “learn” the system’s thermal characteristics and adjust its response accordingly. The result is stable mold temperature control with minimal overshoot, which helps ensure consistent part quality and prevents issues like material degradation from overheating.

By contrast, open-loop controllers (also known as manual or “constant output” controllers) do not use active feedback. Instead, the operator sets a fixed output power level for each zone, and the controller drives the heaters at that level continuously. There is no automatic adjustment based on actual temperature readings – in fact, an open-loop controller may not even require thermocouples (though often temperature is still measured for reference or safety alarms). In effect, open-loop control is like driving a car at a constant throttle without checking the speedometer. This mode is rarely used for normal production in precision molding because it cannot correct for disturbances or environment changes. It is typically found in very basic or older control units, or used as a fallback mode. For instance, many closed-loop controllers can fall back to an open-loop (manual) mode if a thermocouple fails mid-production: the controller will hold the last known power output to the heater to keep the process running until the sensor is fixed. Open-loop control might also be used during initial startup (e.g. to gently heat a mold before thermocouples provide reliable readings). Aside from such cases, fully open-loop temperature control in injection molding is uncommon today – it provides no automatic temperature regulation, so any variation in the system (ambient conditions, plastic flow changes, etc.) will not be corrected. In summary, closed-loop systems leverage sensor feedback and PID control to automatically maintain set temperatures (critical for quality), whereas open-loop systems rely on fixed manual settings with no feedback adjustment.

Key considerations: Virtually all hot runner temperature controllers for modern plastic injection molding are closed-loop by design, given the need for precision. Ensure the controller supports the appropriate thermocouple type (commonly Type J or K) for your hot runner. Look for features like PID auto-tuning, which simplifies setup. If an open-loop mode is available, it should be used only for troubleshooting or emergency operation. Controllers with closed-loop feedback will vastly improve mold temperature consistency and part quality compared to any purely open-loop approach.

(Real-world example: The Polyshot Firebox 3601 is a single-zone hot runner temperature controller that operates primarily in closed-loop (auto) mode, but provides a manual open-loop option. In auto mode it uses a thermocouple and PID to tightly hold the setpoint, while the manual mode can take over to supply a fixed percentage of power if needed. This ensures that even if the sensor fails or during setup, the operator can maintain some control. In practice, such controllers protect your process by defaulting to closed-loop for normal operation, and only deviating to open-loop in special circumstances.)*

Modular vs. Integrated Hot Runner Controllers

Hot runner controllers can also be classified by their hardware architecture – primarily modular versus integrated systems. The distinction lies in how the controller is packaged and how it interfaces with other molding equipment.

Modular hot runner controllers are standalone units composed of interchangeable modules or cards for each set of zones. They are built with scalability in mind, allowing users to tailor the number and configuration of control zones to fit each mold’s requirements. In a modular controller, the mainframe or enclosure may hold multiple module slots, each module typically handling a certain number of zones (for example, a 6-zone module). To increase capacity, you simply add more modules. This design is ideal for environments where the tooling changes frequently or where you need flexibility – for instance, a molder who runs a variety of molds (some with 8 zones, some with 32 zones, etc.) can add or remove modules to match the mold, rather than buying a whole new controller. Modular systems also make maintenance easier: if one zone card fails, it can be swapped out without replacing the entire unit. Zone flexibility is a key advantage – you can start with a small number of zones and expand later. For example, the Gammaflux G24 controller is a modular system that can be configured up to 192 zones in a single enclosure (and even daisy-chained to 384 zones) by adding the appropriate module cards. Many modular controllers come in rack-mounted or console units that can be moved between machines as needed, providing a lot of portability on the shop floor.

Integrated hot runner controllers combine temperature control with other functions or embed the controller within a larger system. There are two common interpretations of “integrated” in this context:

• Functional integration: The controller not only manages temperature but also incorporates additional control tasks (such as sequential valve gate timing, servo pin control, or mold monitoring) into one unified interface. For instance, Gammaflux offers the G24 SVGC unit which integrates hot runner temperature control and sequential valve gate control in a single system. The operator can control heating zones and valve pin actuation from one touchscreen, simplifying operation for complex molds. This kind of integration is useful in high-cavity or advanced applications where coordinating multiple aspects of the molding process is important.


• Physical/machine integration: The controller’s hardware is built into the injection molding machine or production cell, rather than a separate standalone box. In some cases, modular controllers are designed to be completely integrated into the molding machine’s control panel. This means the temperature control interface appears on the machine’s HMI (Human-Machine Interface) and the controller shares power and enclosure with the machine. The benefit is a smaller footprint and streamlined operation – the molder doesn’t have to manage a separate controller unit. Integrated machine control is often offered by injection machine manufacturers or as custom solutions for large systems.

With an integrated controller, the user interface is unified – operators can adjust temperatures and other mold functions from one screen. This can improve ergonomics and reduce training complexity. It’s often seen in systems where space is at a premium (no extra cabinet on the floor) or in highly automated cells. However, integrated controllers might be less flexible if you need to repurpose them for a different machine or mold; they tend to be purpose-built for a specific application or equipment setup.

Technical decision criteria: When choosing between modular and integrated designs, consider your production needs:

• Scalability: Modular controllers excel if you foresee changing zone counts or adding more zones in the future. They allow plug-and-play expansion (e.g., adding another 6-zone module to go from a 12-zone to an 18-zone system).


• Portability: If you want the ability to use the controller on multiple molding machines or move it around the plant, a standalone modular unit is advantageous. An integrated-in-machine controller is essentially tied to one machine or cell.


• Integration of functions: If your process would benefit from synchronizing temperature control with other actions (valve gating, cooling circuit monitoring, etc.), an integrated multi-function controller could provide better coordination.


• Footprint and wiring: Integrated systems reduce the number of external cables and devices – everything is in one package. This can be cleaner and reduce potential points of failure in connectors between a separate controller and the mold.


• Examples: Modular units are common from many suppliers (e.g., Fast Heat’s MOD24 uses plug-in 6-zone modules to build up to 192 zones). Integrated solutions are often seen in turn-key systems; for example, some large automotive molding cells have the hot runner controller integrated with the machine’s PLC for direct control. Gammaflux covers both approaches: the Gammaflux G24 is a modular standalone controller (highly scalable in zone count), while the Gammaflux G24 SVGC and related systems integrate temperature control with valve gate actuation and can even be combined with servo control for complete mold automation in one unit.



Single-Zone vs. Multi-Zone Temperature Controllers

Another fundamental way to categorize hot runner controllers is by the number of control zones they can handle. A “zone” corresponds to one controlled heater (typically one nozzle or one manifold segment with its own thermocouple). Hot runner systems can range from a single heating zone to hundreds of zones, so controllers are designed accordingly.

Single-zone controllers manage just one heating zone. These are usually compact units intended for simple or small hot runner applications. Common use cases include:

• Heated sprue bushings or single-drop molds: If a mold has only one hot gate or a heated sprue, a small controller can regulate that single zone.


• Prototyping and lab setups: When testing a new mold design or material on a single-cavity mold, a one-zone controller is sufficient and minimizes equipment overhead.


• Auxiliary heating devices: Sometimes single-zone units are used for peripheral heaters (e.g., a heated nozzle on an injection unit or a small auxiliary hot runner on a prototype tool).



Single-zone controllers tend to be simple to operate, often with basic dial or digital setpoint controls, though many still incorporate full PID closed-loop logic for accuracy. For example, the Polyshot Firebox is a dedicated one-zone hot runner controller for their sprue bushings and multitip nozzles. It features auto-tuning PID control and solid-state relay output to provide precise temperature management on that single zone, much like a multi-zone system would for each of its zones. The key difference is simply scale.

In contrast, multi-zone controllers are the workhorses for medium to large hot runner systems. Multi-zone hot runner controllers can regulate anywhere from a handful of zones (e.g. 4-8 zones for a small multi-cavity mold) up to dozens or even hundreds of zones on large tools. Each zone is independently controlled, but all zones are housed in one integrated system for convenience and coordination. High zone-count controllers are essential for large or complex molds – for instance, in high-precision industries like medical devices or electronics manufacturing, a mold might have 64 or 128 cavities, each requiring its own temperature zone. The controller must maintain thermal balance across all gates to ensure uniform filling and part quality. Multi-zone units typically come in incremental sizes (8-zone, 16-zone, 32-zone, etc.), often built in a modular fashion as discussed earlier.

Modern multi-zone controllers offer features to manage the complexity of many zones. This includes grouping zones (e.g. treating a set of nozzles as a group with common setpoints or ramp profiles), zone labeling and mapping to the mold layout (to easily identify which zone corresponds to which cavity or nozzle), and advanced diagnostics to pinpoint any zone that is deviating or faulted. High-cavity systems also demand reliable hardware – for example, delivering stable power to 128 heaters simultaneously without significant fluctuation. Controllers like the Gammaflux G24 are designed for such tasks, capable of handling up to 192 zones in one enclosure. To achieve this, they use robust electronics and often network multiple control modules together. Another example on a smaller scale is the Gammaflux LEC series, which is offered in 2, 6, and 12-zone configurations and can network two enclosures for up to 24 zones – a solution aimed at small-to-medium molds needing a reliable but compact controller.

Considerations by zone count: When selecting a controller, you must ensure its zone capacity meets your mold’s needs. It’s wise to choose a controller that can handle a bit more than your current zone count (for future-proofing and possible tool modifications). Also, consider the power per zone requirements – a single-zone controller usually can drive one heater at a certain wattage, while multi-zone systems have per-zone amperage limits (e.g., 15 A per zone module is common). If you have very high-power heaters, make sure the controller’s zone modules are rated appropriately or can use zones in parallel. Multi-zone controllers may offer advanced features like cascade control or synchronous zones (where multiple heaters share one sensor or one sensor controls multiple heaters) – these can be useful for uniformly heating a large manifold with multiple cartridges, for example.

In summary, use a single-zone hot runner controller for simple, single-point heating needs, and multi-zone controllers for any mold with multiple heated drops or manifolds. Multi-zone systems are indispensable for balancing temperatures in high-cavity tools, directly contributing to consistent part weights and quality across all cavities.

Basic vs. Advanced (Smart) Hot Runner Controllers

Hot runner temperature controllers range from very basic units to highly advanced, “smart” systems. This spectrum reflects differences in control technology, features, and overall capabilities.

Basic controllers are the entry-level or older-generation units. They provide the essential function of closed-loop temperature control but with limited sophistication. Characteristics of basic hot runner controllers include:

• Standard PID control: A basic unit will use a standard PID algorithm (or even simpler on/off thermostat control in some very old designs) to maintain temperature. Tuning might be manual (set via knobs) or require trial-and-error. The control output is often time-proportional on/off via solid-state relay or mechanical relay. For example, a simple controller might apply power in fixed cycles (e.g. on for X seconds, off for Y seconds) based on how far the temperature is from setpoint. This works but can lead to slight temperature oscillations.


• Limited interface: Basic units might have a small LED display or analog gauge for temperature, and simple switches or dials. There is usually no graphical interface or advanced menu – just set the temperature and maybe an alarm threshold.


• Minimal diagnostics: They generally have only rudimentary alarms – for instance, an over-temperature cutoff, or a light for a blown fuse. They might not detect issues like a heater that is failing or a thermocouple wired incorrectly (beyond perhaps showing a fault if the sensor is completely open).


• No connectivity: Older or basic controllers operate standalone; they typically do not connect to computers, networks, or PLC systems.


• Use cases: Basic controllers can be sufficient for less demanding applications or when budget is a major concern. They are found in some small injection molding operations, lab machines, or as temporary replacements. They offer temperature control but rely more on the operator to notice and handle any process variances.

On the other end, advanced or smart hot runner controllers incorporate the latest technology to improve precision, usability, and integration. Features of advanced units include:

• Enhanced control algorithms: Rather than a plain PID, advanced controllers use refined algorithms (e.g. Gammaflux’s proprietary PID² or Mold Masters’ Adaptive Process System) that self-optimize and respond faster. These systems often measure temperature at a high frequency (e.g. 20 times per second) and anticipate changes. For instance, Gammaflux controllers constantly compare actual vs. setpoint and calculate the exact power needed, even monitoring the rate of temperature change, to prevent overshoot. This results in extremely tight control (maintaining temperature within a few hundredths of a degree).


• Phase angle firing: High-end controllers typically use phase angle power control instead of simple on/off cycling. Phase angle control acts like a dimmer switch for the heaters – cutting each AC power wave at precise points to deliver a very smooth, continuous power level. This fine-grained control (Gammaflux’s system offers 0.1% power resolution in 1000 steps) yields stable temperatures without the small swings caused by on/off cycling. It also reduces electrical stress; rather than repeatedly heating and cooling the element, the heater sees a steady power input. According to Gammaflux, this smooth power delivery not only improves precision but can extend heater life significantly by reducing thermal shock.


• Comprehensive diagnostics: Advanced controllers come with a suite of diagnostic tools. They monitor each zone for issues like open thermocouple, shorted heater, over/under temperature, and even subtler problems. Some systems feature leak detection alarms that watch for unexpected drops in heater power draw (which can indicate plastic leaking onto a heater and cooling it). They may have “mold simulation” or Mold Doctor functions that automatically analyze zone behavior to detect wiring mistakes or heater degradation. All these help maintenance teams catch problems early and minimize downtime.


• User-friendly interfaces: Most smart controllers have modern touch-screen interfaces or software-based control. They often include features like zone mapping (graphical representation of the mold with color-coded zones), data trending graphs, and wizards that guide the user through setup. For example, the Gammaflux G24/G25 controllers include a Mold Wizard to assist in configuring zone settings and detecting the connected hot runner layout. This reduces setup errors and makes even a complex 128-zone system easier to manage.


• Connectivity and integration: Advanced hot runner controllers are designed to integrate into the wider manufacturing environment. Many support industrial communication protocols (Ethernet/IP, OPC UA, Euromap standards) so they can communicate with the injection molding machine or plant MES (Manufacturing Execution System). Some have remote monitoring via web interfaces or can export data for analysis. For instance, the new Gammaflux G25 stores all zone performance data in an internal database and offers a web dashboard, enabling full traceability of the mold’s thermal performance over time. This kind of Industry 4.0 connectivity means the temperature controller can be part of the smart factory ecosystem, providing data for quality control and predictive maintenance.


• Additional functionality: Smart controllers often incorporate extra capabilities like soft start (gradually heating to bake out moisture), boost mode (temporary higher setpoint for purging), and standby modes (lower holding temperature during idle times). They may also support sequential valve gate control or other add-ons if not fully integrated.



The difference in outcomes between basic and advanced units can be significant. A basic unit might maintain temperature ±2°C with some manual tweaking, whereas an advanced unit can hold ±0.1°C automatically and alert you immediately if something is off. In terms of injection molding quality, advanced controllers contribute to tighter tolerances, reduced scrap, and faster startups (since they auto-tune and diagnose the system quickly). They are especially valuable for challenging molding scenarios: high-cavity molds, sensitive materials, or tight dimensional requirements.

Examples: On the basic side, you have units like early-generation analog controllers or simple digital controllers from various brands – they get the job done for heating, but without frills. On the advanced side, the Gammaflux G24 and G25 are prime examples of smart controllers. The G25, for instance, features a redesigned interface with Linux-based control, offering precise temperature management to within 0.017°C, auto-tuning, a materials database for setup, and full integration options. It includes Mold Doctor® and early leak detection to quickly diagnose issues, and supports OPC UA for connecting with machine controls. Other top-end controllers in the market (e.g. Husky’s Altanium series or Mold-Masters TempMaster series) similarly provide advanced algorithms, touch-screen HMIs, and connectivity. When you invest in a smart hot runner controller, you are effectively getting an industrial temperature controller and process monitor in one package – it not only regulates heat but also helps optimize and safeguard your molding process.

Conclusion and Next Steps

Choosing the right hot runner controller comes down to understanding these different types and matching the controller’s capabilities to your mold and process requirements. Whether it’s deciding on closed-loop vs open-loop (virtually always go closed-loop for quality production), picking a modular vs integrated setup for your plant, sizing a controller for the correct zone count, or weighing the benefits of basic vs advanced features – a clear grasp of these categories will guide you to the best solution. Often, the ideal controller combines several of these aspects (for example, a modular, multi-zone closed-loop controller with advanced features is a common choice for a high-end application).

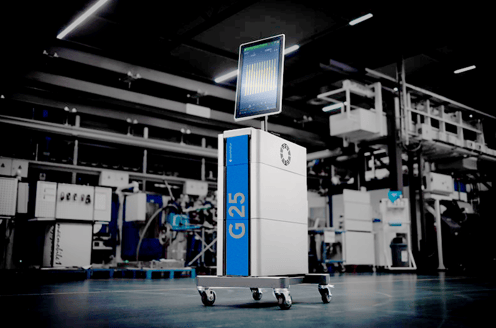

Gammaflux, as a longtime expert in hot runner control technology, offers solutions across all these categories. In fact, Gammaflux systems often blend features from multiple categories into one high-performance architecture. For instance, the Gammaflux G24 is a closed-loop, modular, multi-zone unit with advanced diagnostics, while the Gammaflux LEC is a more basic but robust controller for smaller applications, and the Gammaflux G25 brings the latest smart capabilities in a user-friendly package. By partnering with a trusted provider like Gammaflux, molders can ensure they have the right type of controller with the necessary support and expertise behind it.

For more guidance on selecting and using hot runner controllers, you can refer to our related resources. Choosing the Right Hot Runner Controller offers a detailed selection guide (covering factors like machine interface, power requirements, and support). Additionally, to stay informed on emerging innovations in hot runner technology – such as IoT connectivity and intelligent control algorithms – see our article on Innovations in Hot Runner Technology. Armed with this knowledge, a mid-level engineer or technical buyer will be well-equipped to make an informed decision that boosts their plastic injection molding performance and quality.
